Series T3.29

Here you can configure your e-chain system® individually. All entries and changes are taking over to the part list which is situated at the end of the page.

Series T3.29 - chain, with crossbars every other link

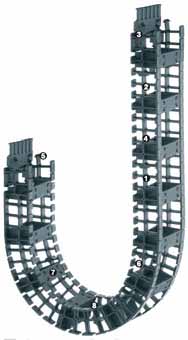

1. Side links on one strip
2. Perfect for high accelerations and speeds
3. Bracket for holding tiewrap plate
4. Three-part design
5.Can be shortened to any length
6. Accessories available such as interior separation, strain relief
7. Low weight
8. Virtually no polygon effect

Series T3.29 is suitable for the following types of applications:

Vertical: Hanging applications, standing applications
Horizontal: Unsupported applications ≤ 1.5 m
Circular movement: Rotating applications possible, may require machining (machining rework is always required from rotation angles of 180°)

When to use Series T3.29

If a very light, cost-effective e-chain® with a 29 mm inner height is required
For inner widths up to 140mm
For unsupported lengths up to 1.45m and fill weights up to 1.0kg/m
If an e-chain® is required for high accelerations and speeds
When an e-chain® with virtually no polygon effect is required
For the smallest bend radii and installation spaces
When quick and easy filling and assembly is required
For minimal abrasion (e.g. for cleanroom applications)

When not to use Series T3.29

When an e-chain® for more fill weight is required
System E6 Series E61.29
When larger inner heights are required
System E6 Series E61.29
When cleanroom ISO Class 1 is required
System E6 Series E61.29
When an enclosed e-chain® for quiet running is required
System E6 Series R6.29

Installation dimensions


Part No. :
Inner width Bi [mm]:
Bending radius R [mm]:
Travel distance S [mm]:
Fixed end dM [mm]:
Chain length^** [mm]:
Number of chain links :
External width Ba [mm]:
H^* [mm]:
D [mm]:
K [mm]:
Hi [mm]:
Ha [mm]:
Weight per link [g]:
Weight [kg/m]:
* The required clearance height is HF = H + 40mm (at 2kg/m fill weight) Please contact us if you have particularly confined space requirements.
** The calculated length corresponds to the chain length without mounting brackets.

A = moving end, B = fixed end
Pitch: 15 mm
Chain links per m: 67 links/1005 mm
Travel: S
Chain length= S/2 + K
Z = Crossbar distance (Standard: every 4th chain link, other distances upon request)

Unsupported length

The unsupported length depends on fill weight
X axis: unsupported length in m FLB/FLG
Y axis: fill weight in kg/m
Lower scale: travel S in m
FLB = unsupported with permissible sag
FLG = unsupported with straight upper run

Reference example A:
fill weight = 0.5 [kg/m]
unsupported length FLB = 1.2 m
travel = 2.4 m

Price index:

Opening mechanism :

Personal contact

Application examples 3D-CAD Samples and catalog order E-Chain® Expert call Service life calculation PDF file Ask the product expert

Designing with igus®

Fast installation times thanks to side part bands

Design specificationFurther information on "unsupported application"

Design specificationFurther information on "gliding application"

Assembly instructions

Other installation types

Technical specifications

Strain reliefs

Interior separation

Option 1: standard

Option 2: full-width shelf

Option 3: Shelves

Product range


unassembled	assembled
Per . chain link


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Width [mm]:
Part No. :

Pc. Add to part list

Online Services:

1. Standard

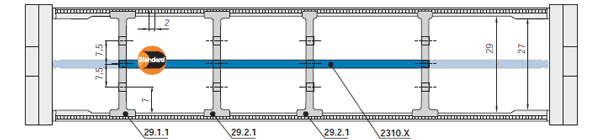

29.1 standard – for all uses
Separator, wide base for maximum holding strength and stability in e-chains®

29.2 Faster cable installation
Secure seating on one side, with a wide base, opposite side narrow for easy cable installation (easily clamped).

2300.X horizontal interior separation
Locks securely into the separator at both ends, allowing a fixed width. Can be used as a full-width shelf for integrated interior separation or as a shelf for modular shelving at three levels.

Product range


unassembled	assembled
Per . chain link

Please use Configurator for partitioning of interior and for filling with cables.

Call configurator


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Width [mm]:
Part No. :

Pc. Add to part list

Online Services:


Width [mm]:
Part No. :

Pc. Add to part list

Online Services:

2. Full-width shelves

In the application of many small cables with similar diameters

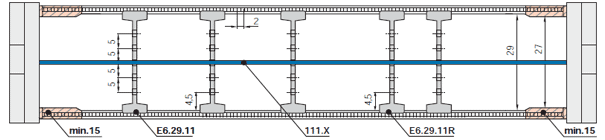

Full-width shelf 111.X can be combined with separator E6.29.11 and notch separator E6.29.11.R
Full-width shelf 221.X can be combined with middle plate E6.29.12, strain relief separator E6.29.12.Z, side plate E6.29.13 and shelf 2210.X

Product range


unassembled	assembled
Per . chain link

Please use Configurator for partitioning of interior and for filling with cables.

Call configurator


Part No. :

Pc. Add to part list

Online Services:


Part No. :

Pc. Add to part list

Online Services:


Width [mm]:
Part No. :

Pc. Add to part list

Online Services:

3. Shelves

For applications with many cables with different diameters. Shelves can be fitted at alternate heights within the entire chain width

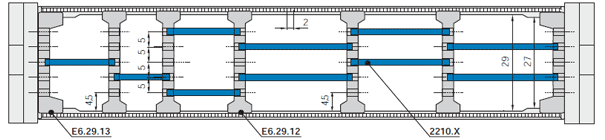

Shelf 2210.X can be combined with middle plate E6.29.12, strain relief separator E6.29.12.Z, side plate E6.29.13 and full-width shelf 221.X

Mounting brackets

Polymer bracket

unassembled	assembled

Tie wrap plate or strain relief with C-profile can be fitted to the last chain link.

Connectivity for tiewrap plate

Solid connection with the e-chain®

Minimized outer width

Fastening of the e-chain® possible on support surface


:
Part No. :

Part No. :

Part List

Personal contact

GToB Imprint General notes Data protection declaration

Min. permissible temperature [°C]	-40
Max. permissible temperature [°C]	70
Speed FLG max. [m/s]	20
Speed FLG max. [m/s²]	200
Speed FLB max. [m/s]	3
Speed FLB max. [m/s²]	6
Flammability class of chain link	VDE 0304 IIC UL94 HB

hanging (max.) [m]	0
standing (max.) [m]	0
max. vertical, long travels [m]	0

Series T3.29

Series T3.29 - chain, with crossbars every other link

Installation dimensions

Unsupported length

Long travels

Other installation types

Technical specifications

Interior separation

Product range

Product range

Product range

Mounting brackets

Part List
